Vixen VMC200L Reducer Tests
Created: 09/29/2016

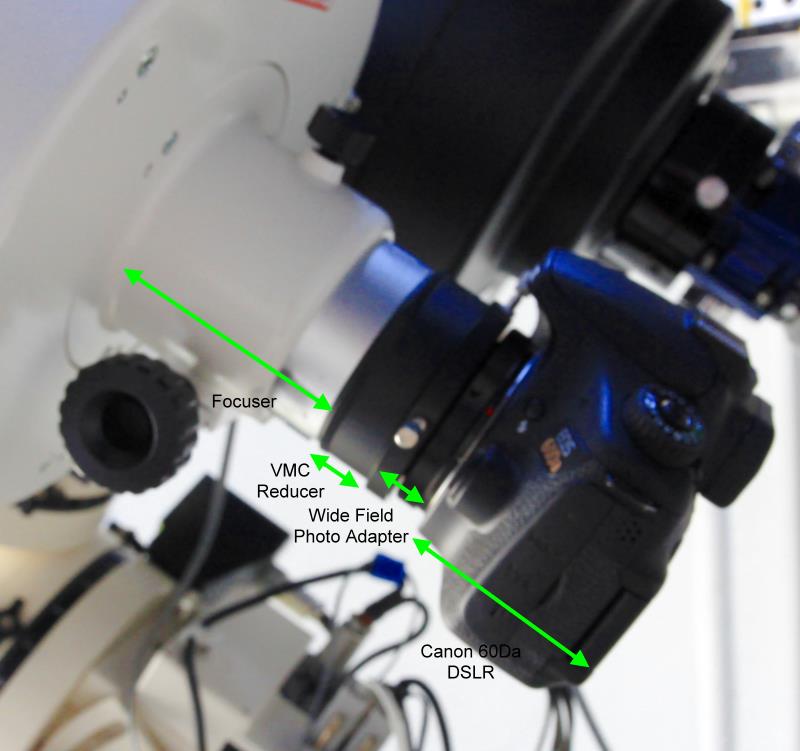

01 VMC200L Reducer Setup.JPG

Vixen VMC200L with VMC Reducer.
Astrophotography Setup.
VMC Reducer screws into 60mm threads of focuser.
Wide Field Photo Adapter screws into VMC reducer.
Canon T Ring attached to Wide Field Photo Adapter.
Canon 60Da connected to T ring.

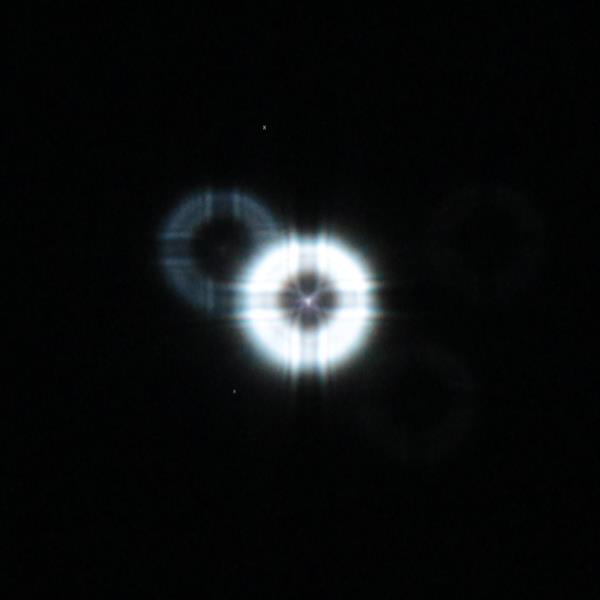

02 VMC200L-PF Star Test Focus In Crop.JPG

VMC200L star test without the reducer.
Two close stars focused in.

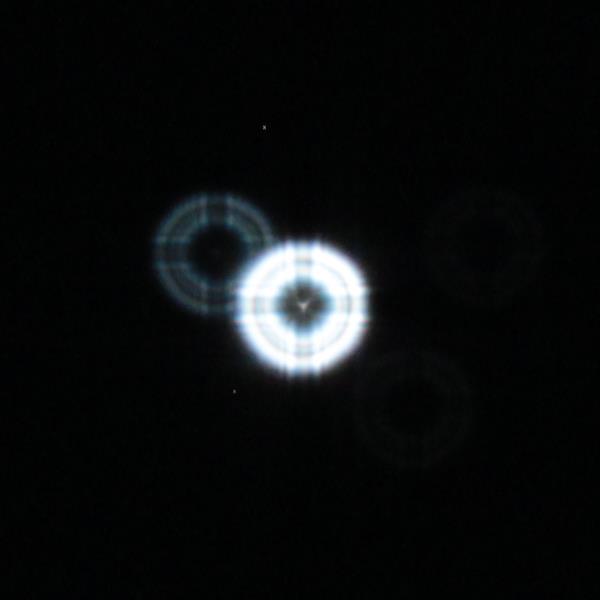

03 VMC200L-PF Star Test Focus Out Crop.JPG

VMC200L star test without the reducer.
Two close stars focused out.

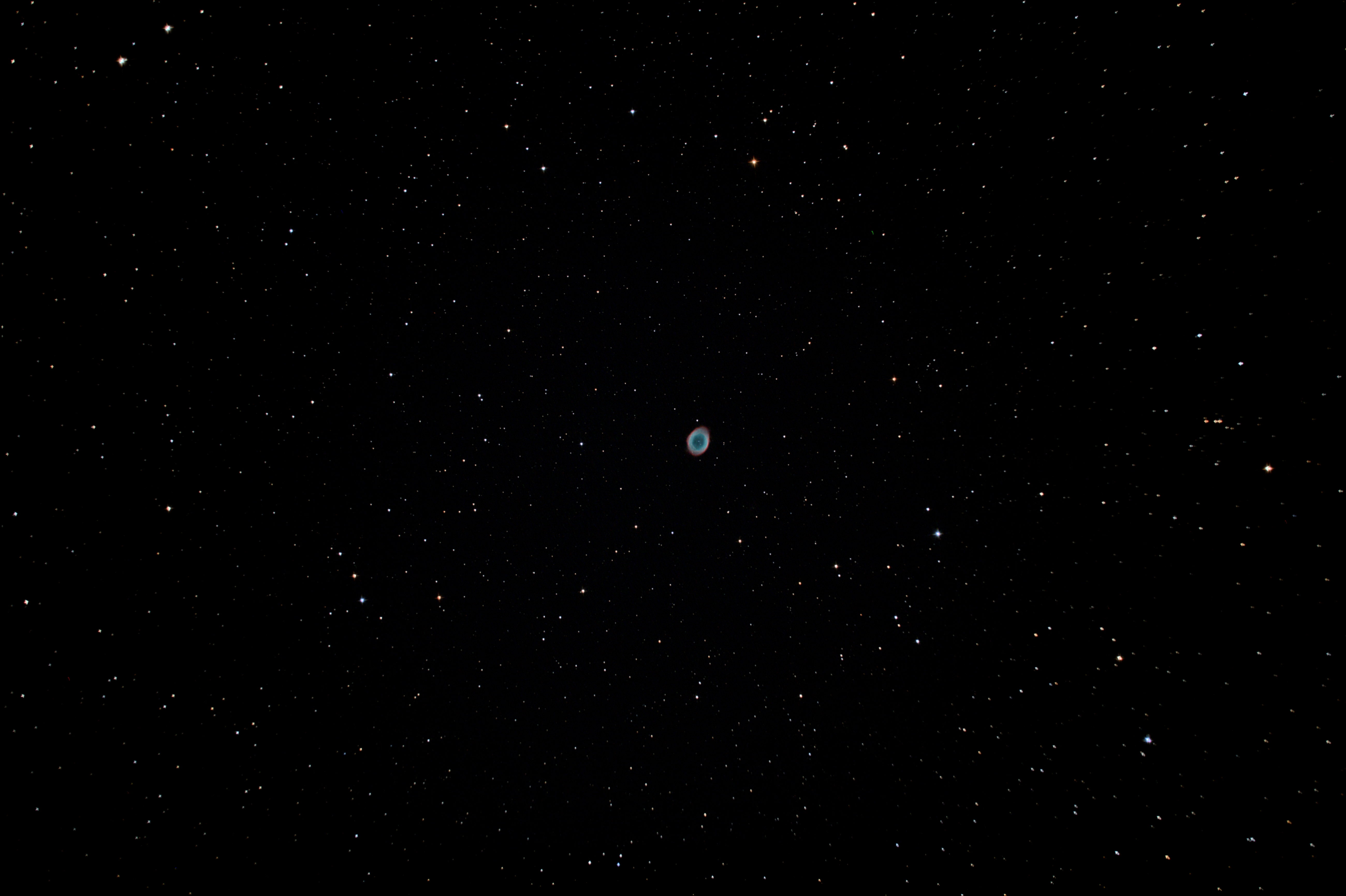

10 M57 VMC200L-REDUCER 01.jpg

VMC200L with Reducer, star test image of M57.
Full frame of Canon 60Da RAW capture of 100 10 second images.
Processed with ImagesPlus 6.5.

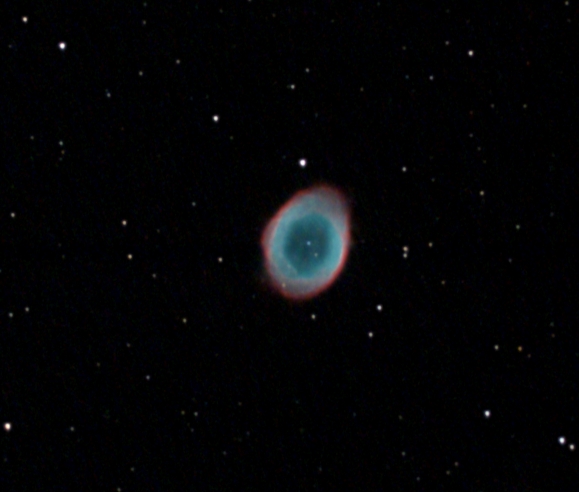

11 M57 VMC200L-REDUCER 01 Center.jpg

VMC200L with Reducer, star test image of M57.
Center cropped.

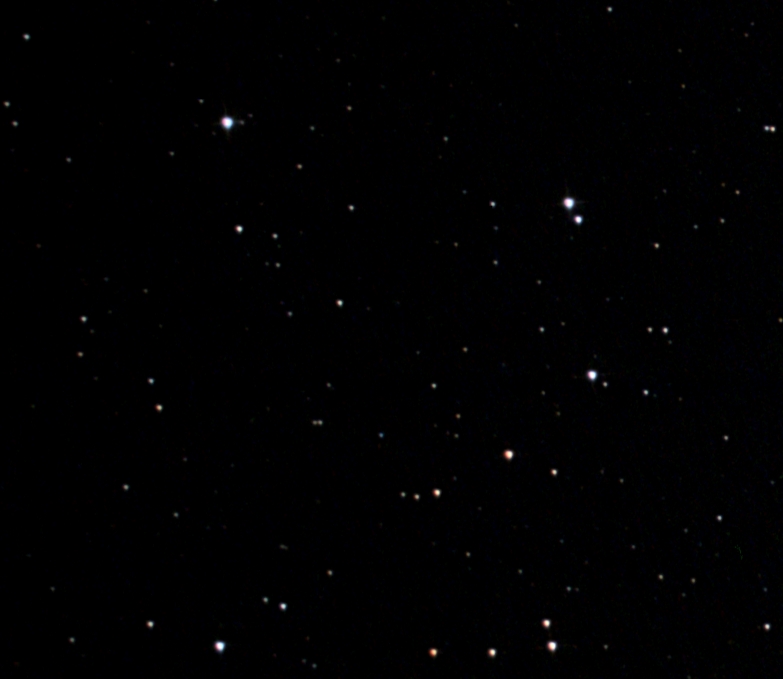

12 M57 VMC200L-REDUCER 01 Center Left.jpg

VMC200L with Reducer, star test image of M57.
Center Left cropped.

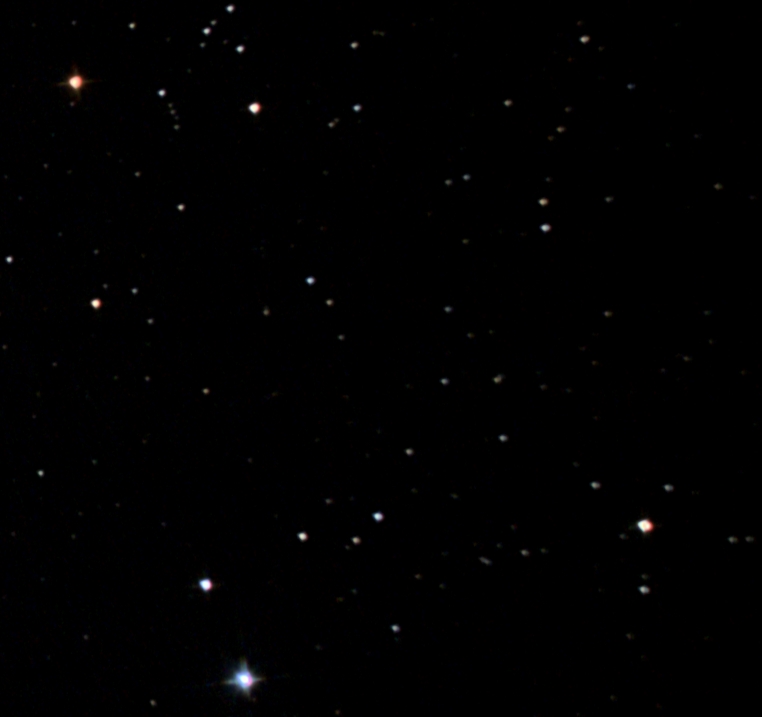

13 M57 VMC200L-REDUCER 01 Center Right.jpg

VMC200L with Reducer, star test image of M57.
Center Right cropped.

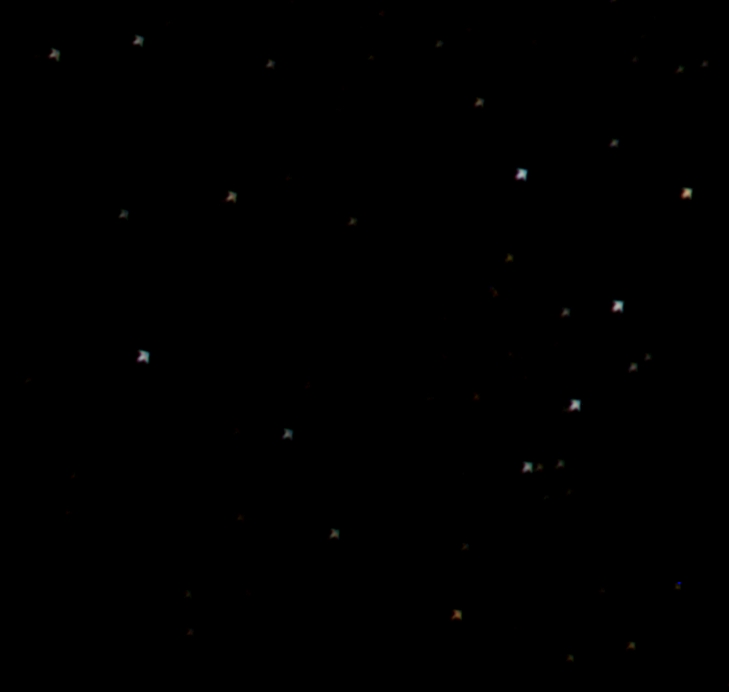

14 M57 VMC200L-REDUCER 01 Lower Left.jpg

VMC200L with Reducer, star test image of M57.
Lower Left cropped.

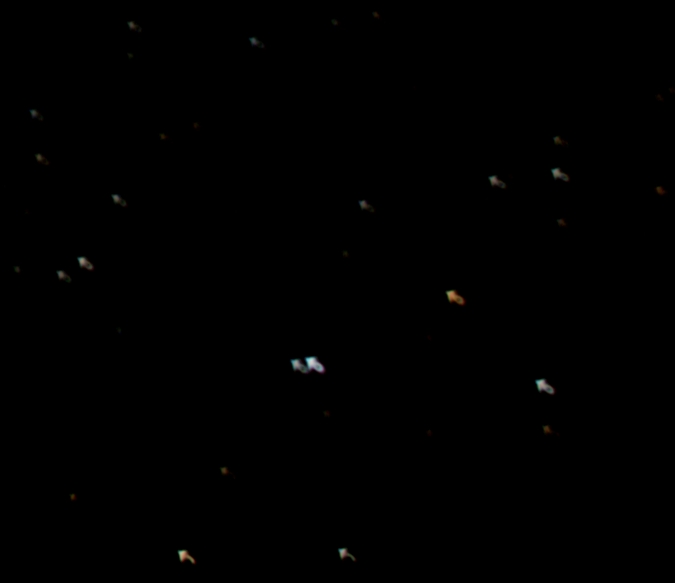

15 M57 VMC200L-REDUCER 01 Lower Right.jpg

VMC200L with Reducer, star test image of M57.
Lower Right cropped.

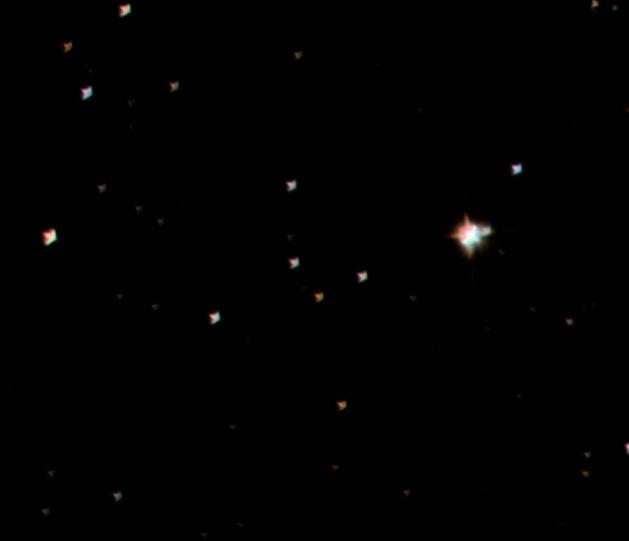

16 M57 VMC200L-REDUCER 01 Upper Left.jpg

VMC200L with Reducer, star test image of M57.
Upper Left cropped.

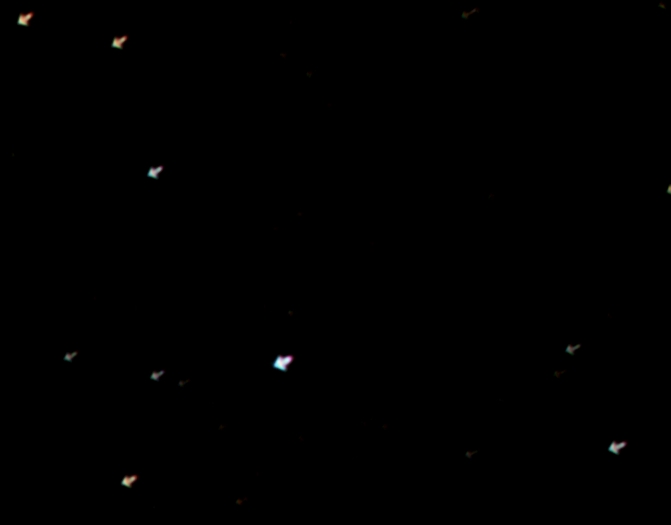

17 M57 VMC200L-REDUCER 01 Upper Right.jpg

VMC200L with Reducer, star test image of M57.
Upper Right cropped.

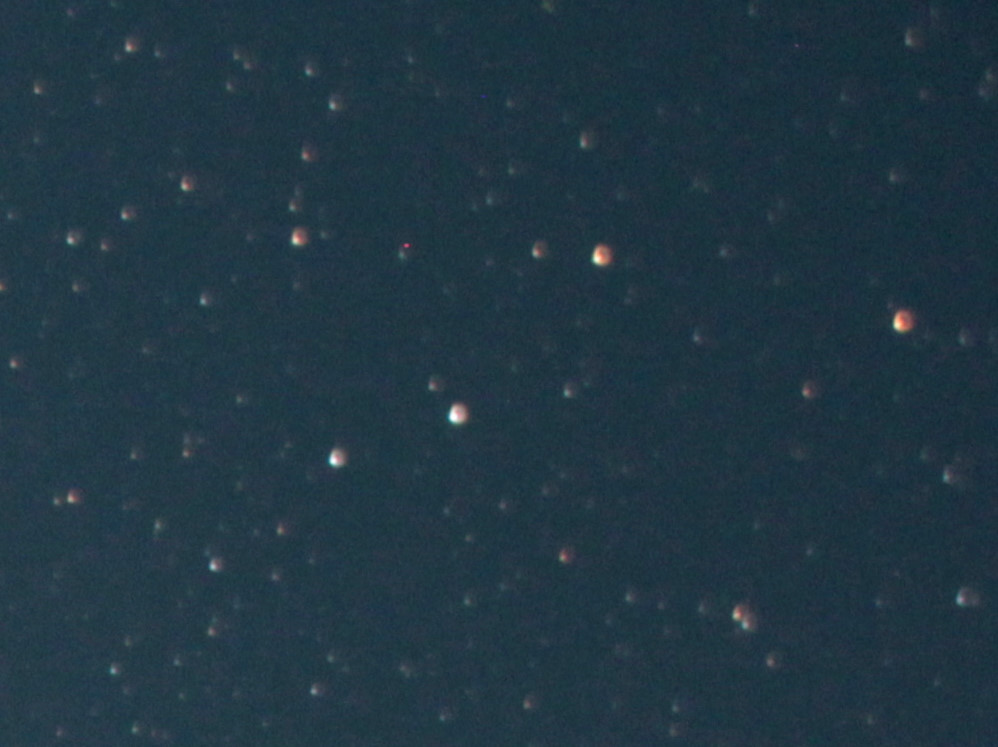

18 VMC200L-APCCDT_Config1_Light_120SecISO1000_000004 Upper Right.JPG

VMC200L with Astro-Physics CCDT76 Reducer, star test.
Upper Right cropped.

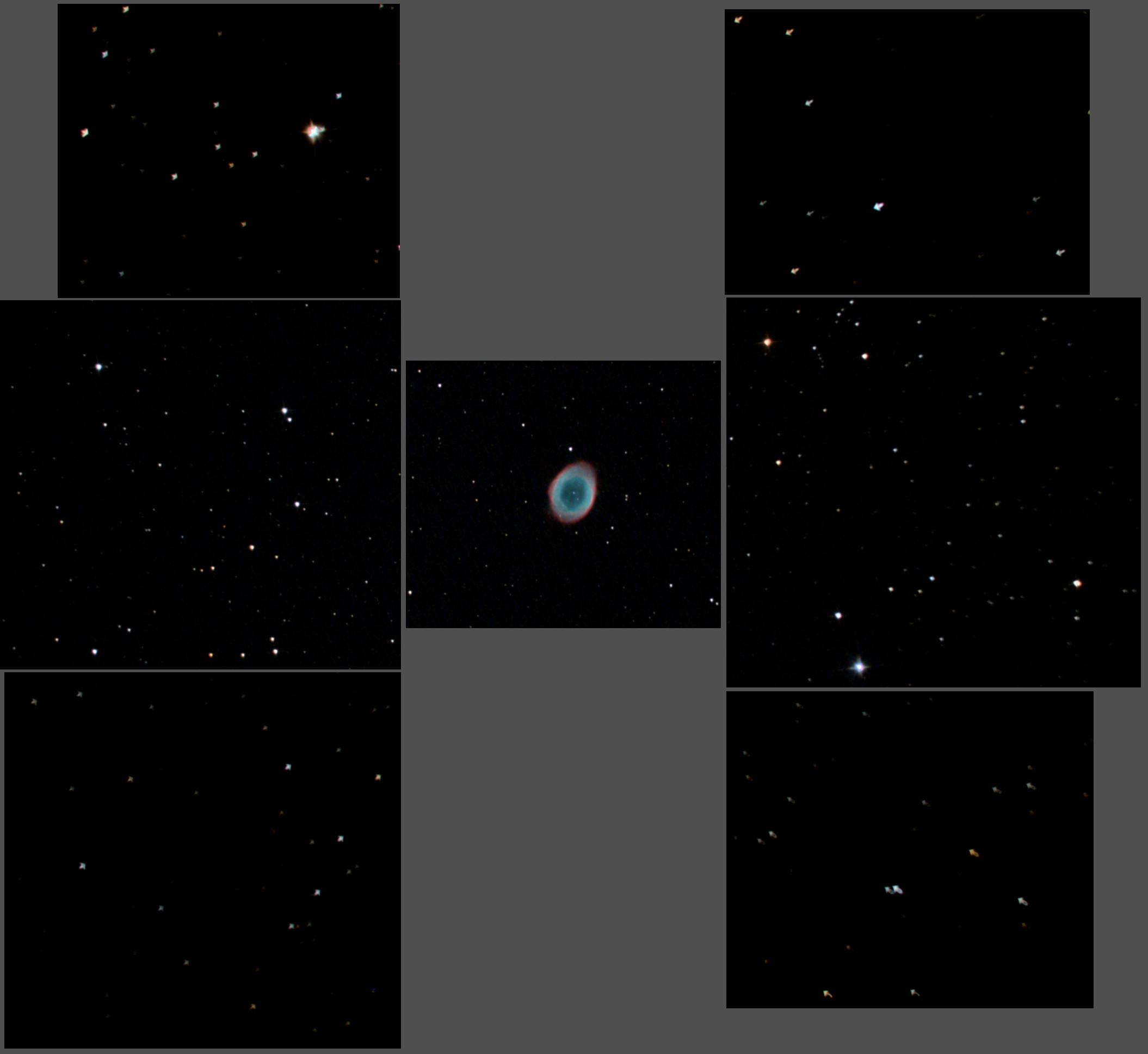

20 M57 VMC200L-REDUCER 01 Combined.jpg

VMC200L with Reducer, star test image of M57.
Cropped areas.

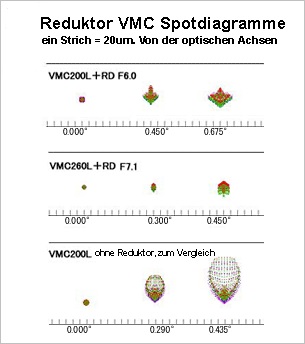

25 VMC Reducer Spot Diagram.jpg

Vixen VMC200L Spot Diagram
RD = Reducer
F6.0 is VMC200L
F7.1 is VMC260L
