| Description |
Supplier |
Item Number |
Quanity |
| Lumber |
|||
| 5-1/2" x 1/2" x 1'
Popular board |
Local lumber store |
1 |
|
| 3-1/2" x 3/4" x 1'
Popular board |
Local lumber store | 1 |
|
| 2" x 1/4" x 1' Popular
board |
1 |
||
| Hardware |
|||
| 1/4"-20 Hex drive
knife-thread
insert 33/64" long |
McMaster-Carr Supply Co. | 92105 A100 |
2 |
| 3/8" stainless steel washer | Local hardware store |
1 |
|
| 1/4" stainless steel washer | Local hardware store | 5 |
|
| 3/8"-16 x 1" stainless
steel
socket head cap screw |
Local hardware store | 1 |
|
| 1/4"-20 x 1" stainless steel socket head cap screw | Local hardware store | 1 |
|
| 1/4"-20 x 3/4" stainless
steel socket head cap screw |
Local hardware store |
2 |
|
| 1/4"-20 x 1/2" stainless
steel round head machine screw |
Local hardware store |
1 |
|
| 1/4"-20 x 3/4" stainless
steel round head machine screw |
Local hardware store |
1 |
|
| Yellow plastic thumb
screw head,
fits 3/8" socket head screw |
McMaster-Carr Supply Co. |
1 |
|
| Black plastic thumb screw
head,
fits 1/4" socket head screw |
McMaster-Carr Supply Co. | 1 |
|
| Fiberglass-filled nylon
knurled-rim knob 1/4"-20 x 3/4" |
McMaster-Carr Supply Co. | 63625 K91 |
2 |
| Plastic two-arm knob
1/4"-20 blind hole threaded insert |
McMaster-Carr Supply Co. | 6477 K69 |
2 |
| Neoprene rubber edge
trim, 1/16" opening, 7/32" inside depth |
McMaster-Carr Supply Co. | 8507 K121 |
3 ft. |
| Aluminum pull handle 3" white | McMaster-Carr Supply Co. | 6356 A14 | 1 |
| Tube |
|||
| Vixen 232mm tube rings |
Anacortes |
AM-TR-8737 |
1 |
| Solid aluminum dovetail
bar |
ScopeStuff |
L5DB |
1 |
| 9" O.D. x .064" wall
thickness aluminum tube, one end rolled |
Hastings Pipe Co. |
1 ft. |
|
| Red dot finder |
ScopeStuff |
RDP1 |
1 |
| Red dot finder base |
ScopeStuff | RDPB |
1 |
| Additional felt for tube
rings, self-stick |
Local craft store |
1 |
|
 |
|

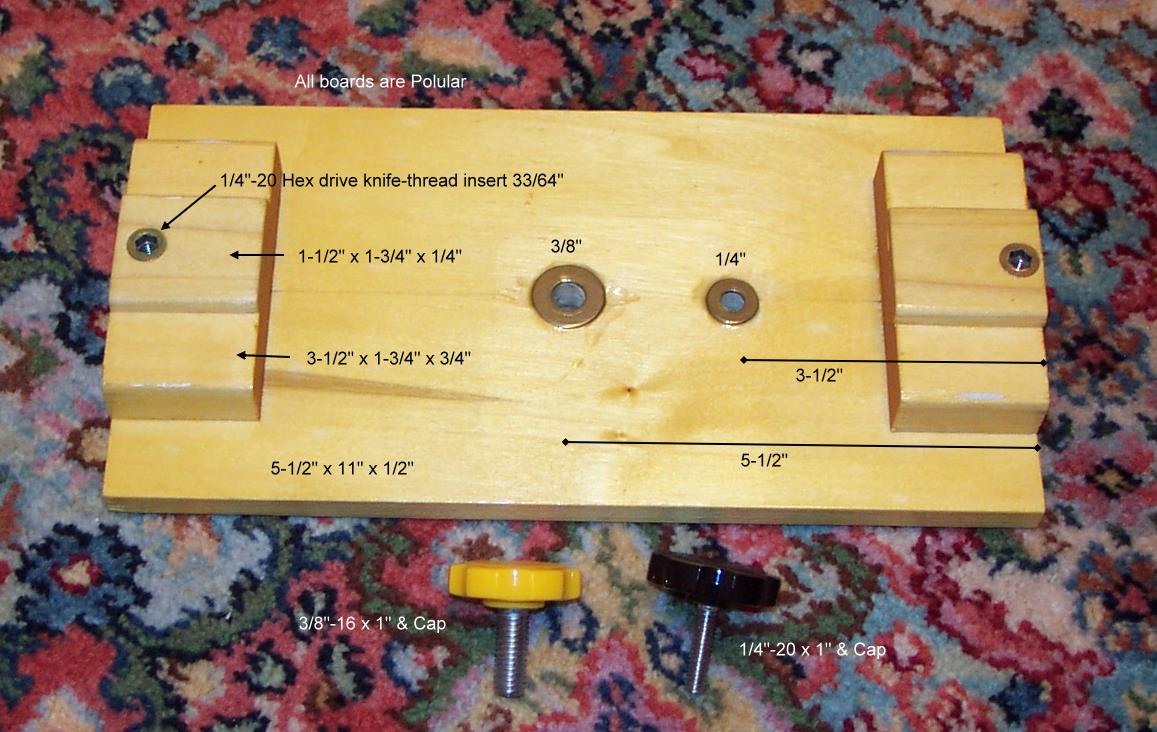

Mounting board
|
 |
|
Tube
|
 |
|
Tube
rings
|
 |
|
Mounting
board attached
|
 |
|
Views
of completed custom tube
|
| Designed and build by William
E. Rison |
