and Astro-Physics 900GTO Mounts
 |
 |
 |
 |
| Meade LX200 |
Celestron CGE |

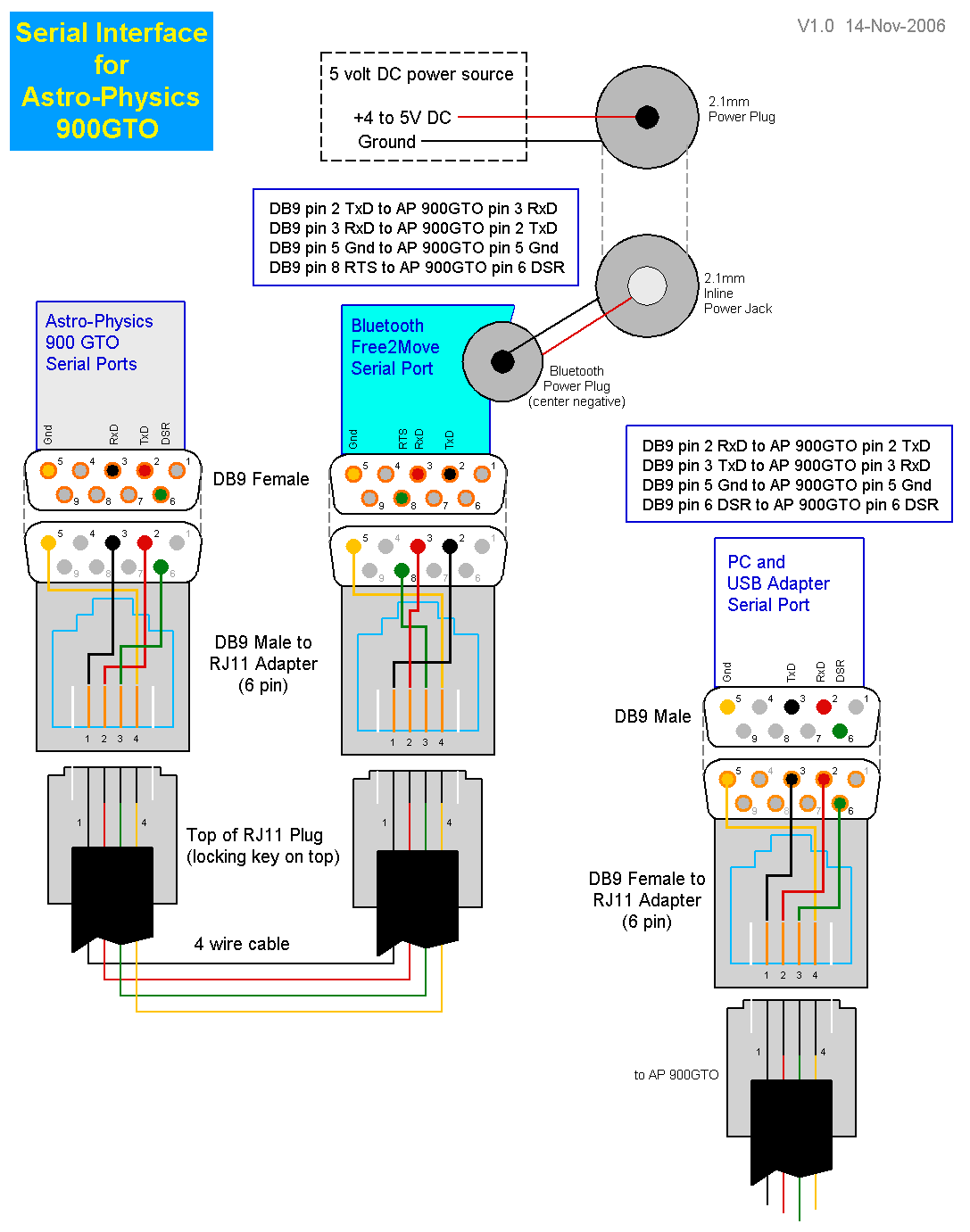

Astro-Physics 900GTO |

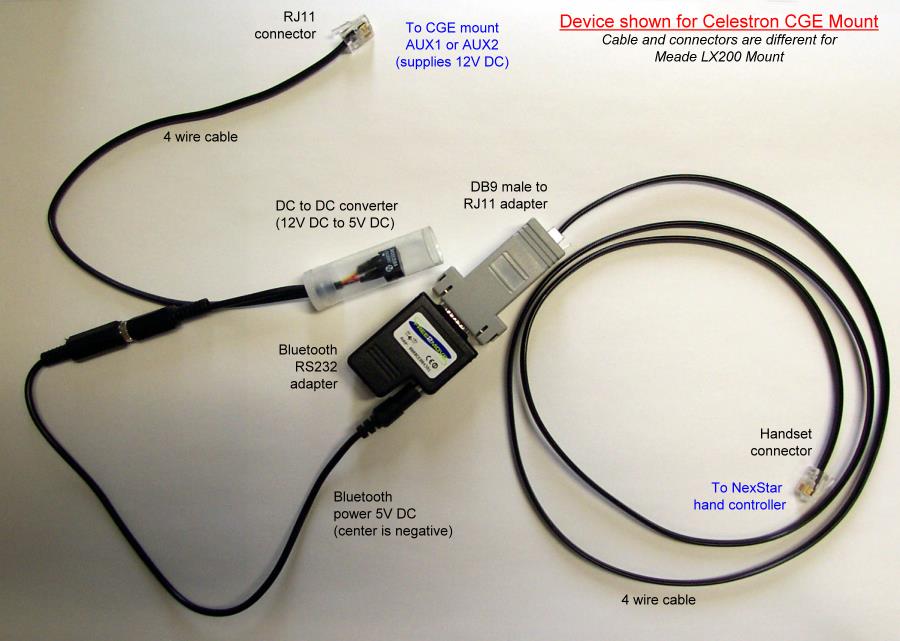

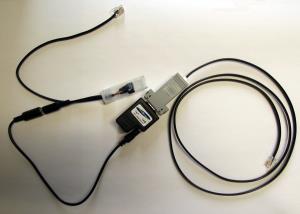

This adapter will allow a wireless bluetooth enabled PC, Laptop or Pocket PC to communicate with

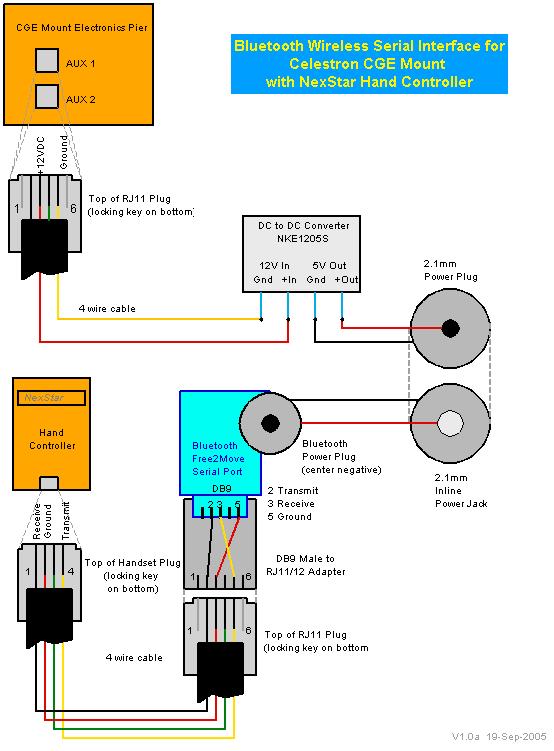

the Meade LX200 Autostar II, Celestron CGE NexStar hand controller or Astro-Physics 900GTO (may work on all GTO mounts). The bluetooth serial port plug takes power from the LX200 RS232, CGE AUX port or any 4 to 5 V DC power source. These ports output 12V DC so a 12 to 5V DC to DC converter is used to drop the voltage down to the 5V DC that the bluetooth serial plug requires. Any 5V DC power source can be used but this way everything is self contained.
This setup has been tested using a CGE 1400, Meade LX200GPS and Astro-Physics 900GTO with a hp iPAQ h2210 Pocket PC running TheSky Pocket Edition and Windows XP laptop with MegaStar 5, SkyChart III, Visual Basic 6 and Microsoft .NET framework 2.0 programs written by me.
Parts List
| Item |
Part
Number |
Vendor |
Quaintly |
Cost |
LX200 |
CGE |
| Free2Move Bluetooth Serial Port
Plug |
F2M01 |
eXpansys |
1 |
$120.95 |
x |
x |
| C&D Technologies DC-DC
Converter 1W single output 12-5V |
NKE1205S |
Mouser |
1 |
$8.35 |
x |
|
| RJ11 Plug 6P-4C Modular Phone
Connector |
154-UL6234 |
Mouser |
2 |
$0.46 |
x |
x |
| Handset Plug 4P-4C Modular Phone
Connector (for NexStar) |
154-UL6164 |
Mouser |
1 |
$0.23 |
x |
|
| DC Power Plug 2.1mm |
1710-0721 |
Mouser |
1 |
$0.76 |
o |
x |
| DC In-Line Power Jack 2.1mm |
163-0300 |
Mouser |
1 |
$1.63 |
o |
x |
| 4.5 volt DC to DC Car Adapter |
273-1857 |
Radio Shack |
1 |
$18.99 |
o |
|
| DB9 Male to RJ-11/12 Terminal
Connector |
131
2010 |
Cyberguys |
1 |
$1.99 |
x |
x |
| Flat Module Telephone Cable 4
Conductors |
4 feet |
x |
x |
|||
| Heatshrink Tubing very small |
6 inches |
x |
||||
| Heatshrink Tubing Large or
Plastic Bottle (Encloses DC-DC converter) |
1 |
x |
Optional Computer Parts
| Item |
Manufacturer |
Part
Number |
Cost
Est. |
| PersonalAir Bluetooth USB 1.1
Adapter |
D-Link |
DBT-120 |
$37 |
| iPAQ h2210 Color Pocket PC -
400MHz 64MB Bluetooth |
hp |
FA103A |
$360 |
Last update 20-Nov-2006
